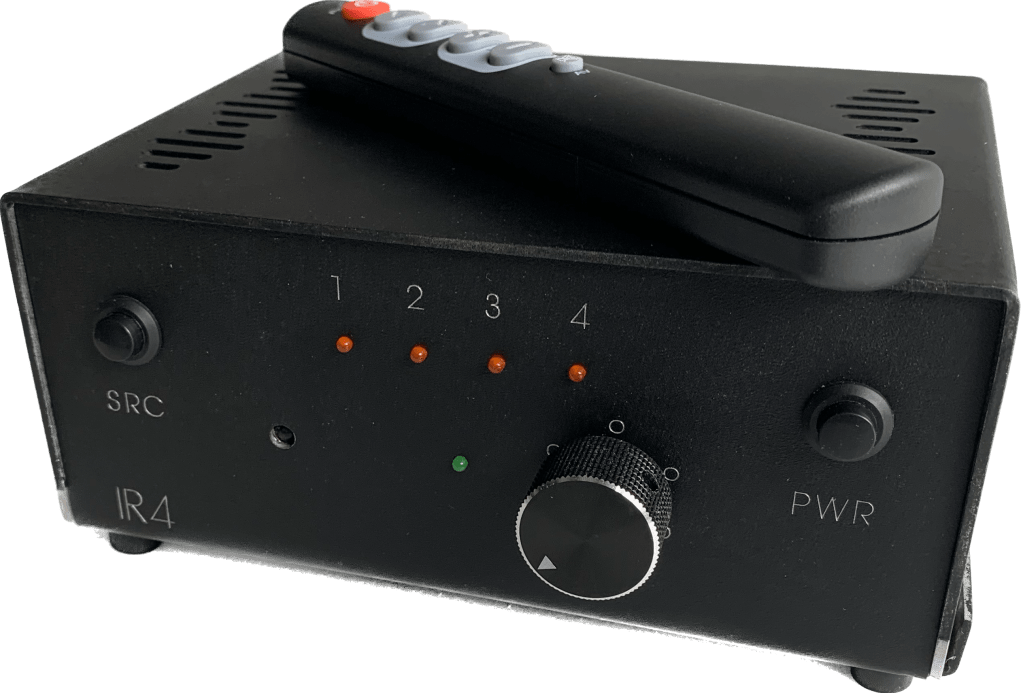

With IR remote control

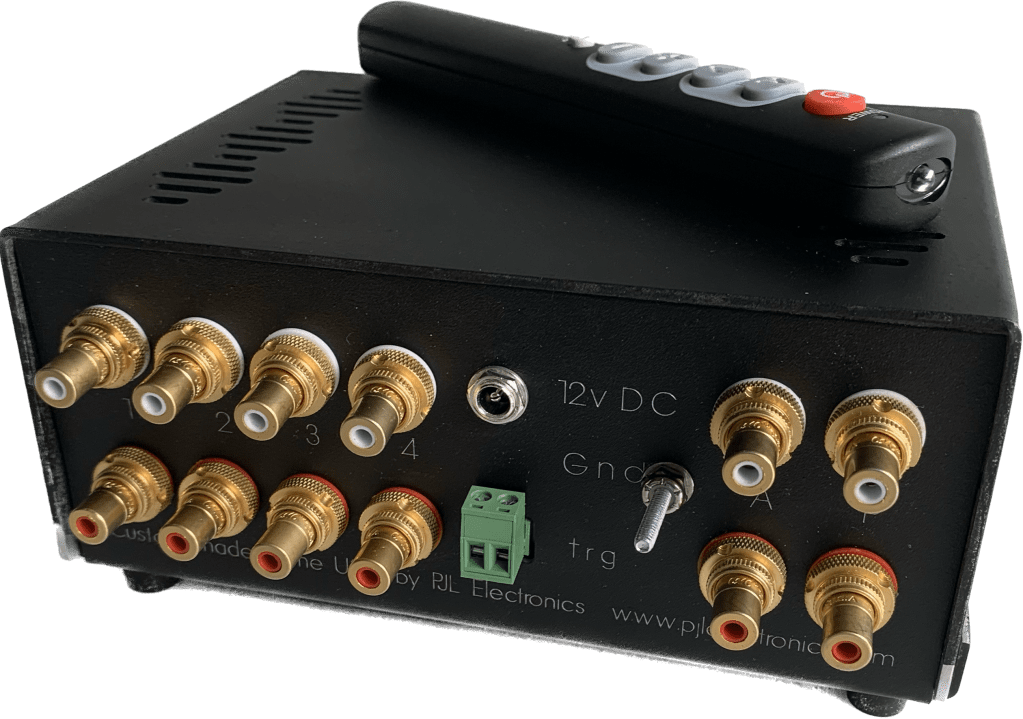

4 input channels with both passive and active outputs. Active output adds a simple JFet buffer.
All quality parts including gold jacks, Mircochip PIC16F18323 micro-controller, Vishay TSOP34440 IR receiver, Texas Instruments SN754410 motor driver and Bourns 100k motorized pot.
Dry or wet control outputs follow power status. Ideal for triggering external devices/amps or RPC. Contacts rated .100A @ 12Vdc.
Precise 2 speed motor control step rate. Click – Hold – Release will increment / decrement volume in small steps. Rapidly clicking and releasing will increment / decrement volume at a high rate
Intelligent features include instruction received feedback via power led and return to low volume on shutdown.
Non shorting mute circuit.
Compatible with any remote that supports Sony DAV10 12 bit codes.
Assembled on high quality silver plated PC boards.
Powder coated 3003 aluminum enclosure. .062 inch base and .080 inch vented top.
Includes pre-programmed remote and DC power supply.
