RPS Extreme Phono Stage

Add to Cart     RPS Extreme MM basic system $659.00

Add to Cart     Decade loading controls add $120.00

Add to Cart     Five capacitor choices add $50.00



Our most powerful and precise phono stage. With 5 times the output current capability of our other phono stages it will drive any amplifier input impedance and interconnect cable with ease.

Shown with all available features.



RPS Extreme


  • Gain: 43db  MM or 65db MC  (MM shown above)

    10k or higher receiver, amp or line stage suggested.

  • All tube. two 12ax7s and two 12au7s.
    All discrete components.
    Passive EQ.
    Linear supply with large magnetics external the enclosure.
    AC coupled inputs.
    600 ohm transformers outputs.

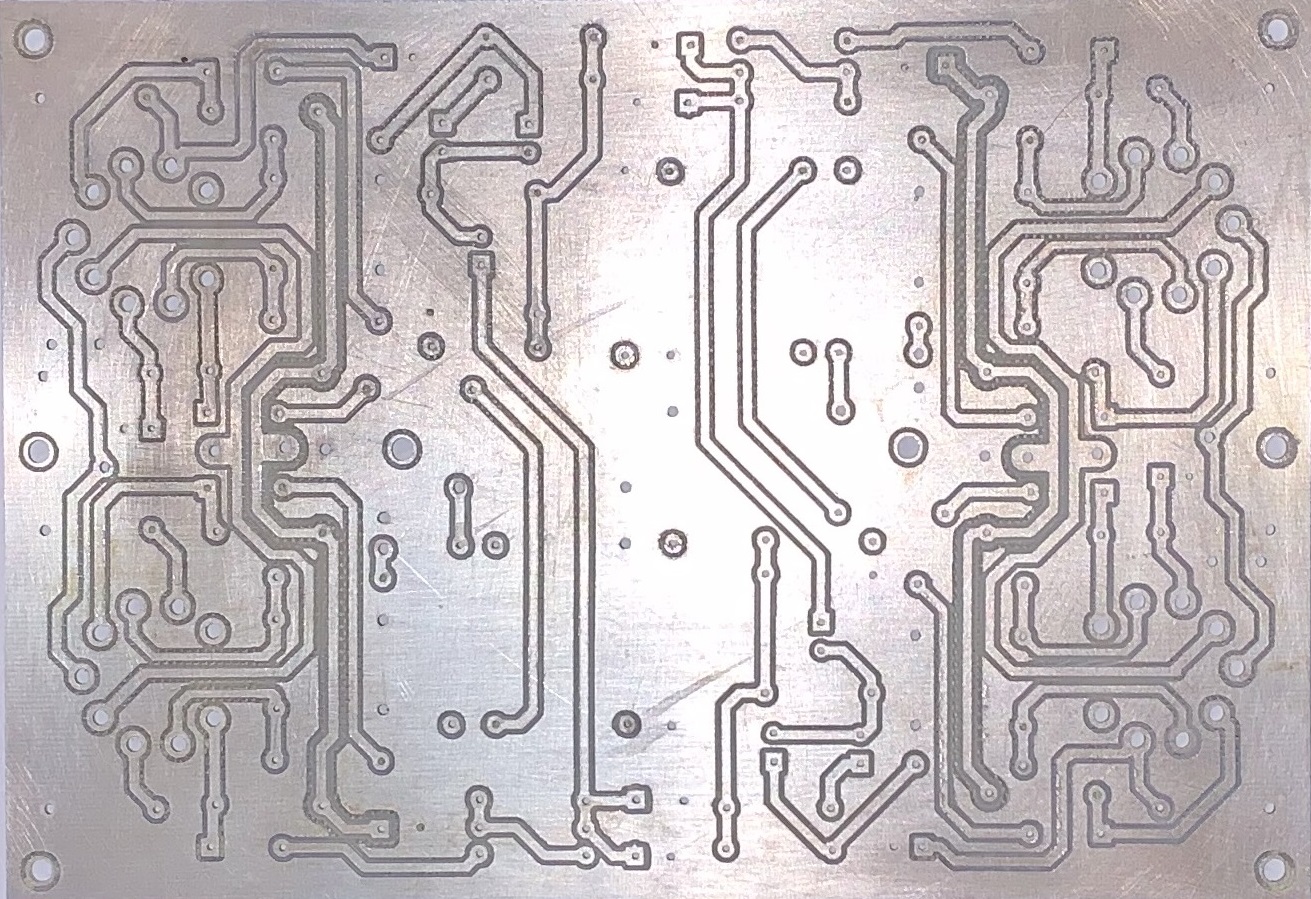

    High quality U.S. made Silver plated FR4 PC board.
    Uses a mix of WIMA, Elna, and Panasonic caps in audio.
    Painted 12″ X 8″ X 3.5″ vented aluminum enclosure made from 1/16th 3003.

  • Warranty: 6 months parts and labor.
