Vinyl Edition – Phono tube Preamp

Available from my eBay store!

Although this preamp is classified as a hybrid it differs from others in one significant way. It features a real tube preamp designed with practices and technologies consistent with the era of tube audio coupled with an ultra-low noise OPA2134 front end.

“Totally amazing.The work put in R&D really comes to the forefront sonically.AAA” ebay 3***2

“wow, what a fabulous Phono Preamp,well packed,arrived with in time line 100%” ebay u***m




Vinyl Edition Standard – phono, and aux inputs. Assembled using Panasonic caps, carbon resistors, tin sockets and jacks on the tube board plus wimia caps and carbon comp resistors on the input board. The power supply uses a combination of Panasonic, Nichicon caps, metal film and carbon resistors.

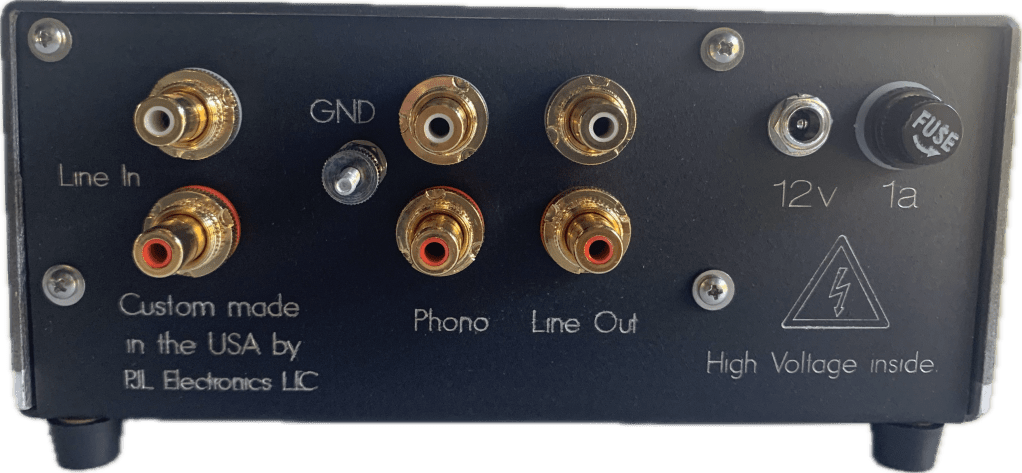

Vinyl Edition Gold – phono and aux inputs. Assembled using carbon comp resistors, wimia / elna caps, gold tube sockets and gold jacks. The power supply uses a combination of Panasonic, Nichicon caps, metal film and carbon resistors.

gold1  gold2




Vinyl Edition Plus – phono, aux, and Bluetooth inputs with bass, treble and volume control. Panasonic caps, carbon resistors, tin sockets and jacks on the tube board plus wimia caps and carbon comp resistors on the input board. The power supply uses a combination of Panasonic, Nichicon caps, metal film and carbon resistors.




Vinyle preamp schematic tube board

riaa input board schematic
